⚙ INTERNATIONAL STANDARD COMPLIANCE • TM-700 SERIES

Industrial Hose Fittings, Flanges & End Couplings
DIN EN 1092-1 Flanges, Stainless Swivel Unions & Custom CNC Machining

The operational integrity of flexible metal assemblies relies on precision-welded end fittings. Tume Hortum manufactures machined swivel flanges, weld stubs, hexagon male nipples, female unions, and quick couplings in AISI 316L, AISI 304, and carbon steel.

⚡ Open S.T.A.M.P.E.D. Configurator Request Official Quote

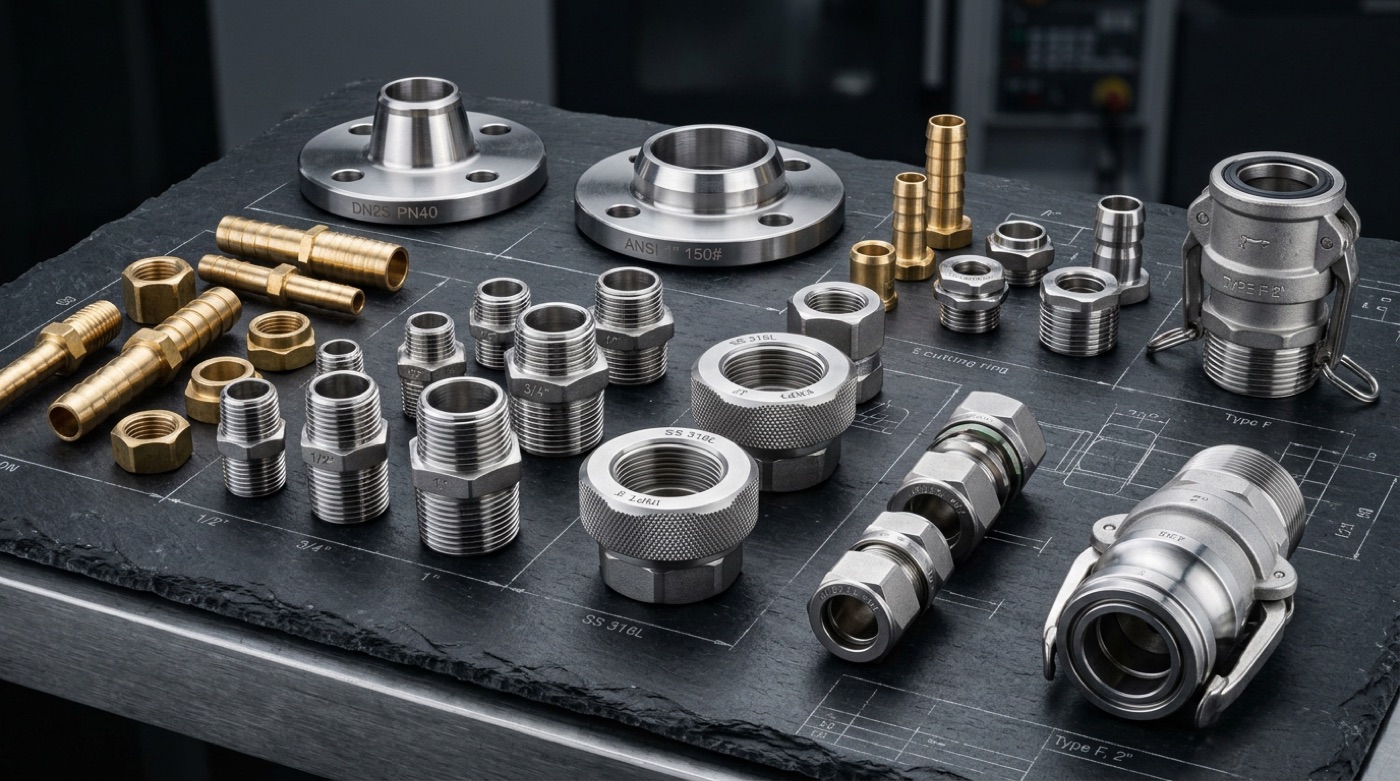

Industrial Hose Fittings, Flanges & End Couplings

Technical Specifications

EN ISO 10380 / DIN / ANSI
Materials AISI 316L, 304, 321 Stainless Steel, Carbon Steel (St 37-2), Brass
Flange Standards PN 6, PN 10, PN 16, PN 25, PN 40 (DIN EN 1092-1) & Class 150/300 (ANSI)
Thread Standards BSP / BSPT (ISO 7-1, 228), NPT (ASME B1.20.1), Metric (DIN 2353 24°)
Welding Procedure TIG / Argon shielding with protective stainless collar ferrules
Quick Couplings Stainless Steel Camlocks (Types A, B, C, D, E, F, DC, DP)
Custom Machining CNC lathe manufactured custom fittings from blueprints or sample parts

Frequently Asked Engineering Questions

What is the advantage of swivel plate flanges on metal hoses? ▾

Swivel plate flanges enable effortless bolt-hole alignment during plant installation and prevent torsional twist, the leading cause of premature corrugated metal hose failure.

Which material grade is recommended for corrosive service? ▾

AISI 316L is recommended for marine, chemical, and demineralized water service, while AISI 304 or zinc-plated carbon steel suffices for dry gas and steam lines.

Can you supply custom hydraulic or metric threads? ▾

Yes, our CNC machine shop produces custom DIN 2353 heavy/light series metric fittings, JIC 37°, and bespoke engineered unions.

Need Custom Dimensions or Technical Datasheets?

Our engineering team provides same-day turnaround for standard and custom hose assemblies.
