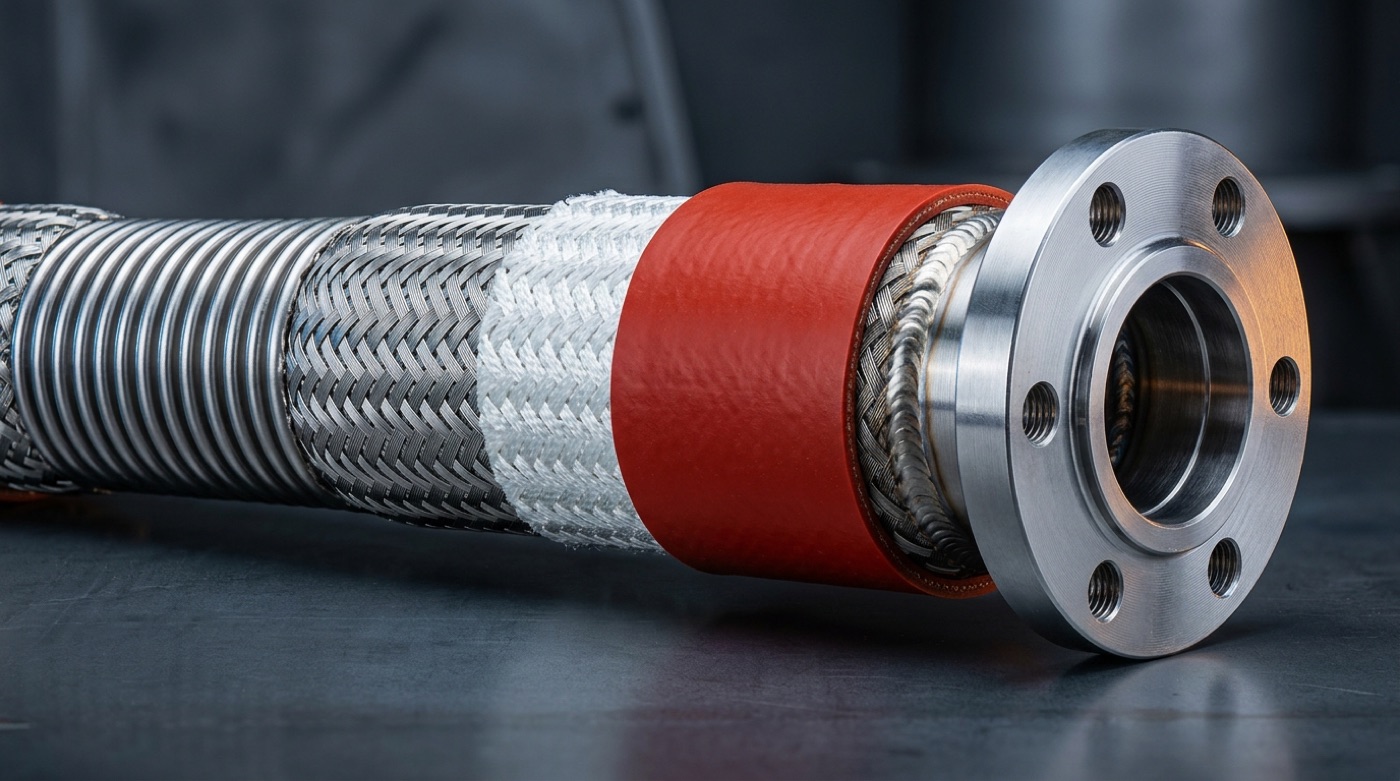

Corrugated Stainless Steel Flexible Metal Hose Manufacturing
AISI 316L, 321 & 304 Industrial Metal Flex Hoses

Since 2008, Tume Hortum has manufactured annular corrugated flexible metal hoses engineered for extreme temperatures, high vibration absorption, and corrosive fluid conveyance. Certified to EN ISO 10380 standards in Tuzla, Istanbul.

⚡ Open S.T.A.M.P.E.D. Configurator Request Official Quote
Corrugated Stainless Steel Flexible Metal Hose Manufacturing

Technical Specifications

EN ISO 10380 / DIN / ANSI
Nominal Diameter DN 6 (1/4") to DN 300 (12")
Core Alloy AISI 316L / AISI 321 / AISI 304 Stainless Steel
Braid Reinforcement Unbraided / Single Braid / Double High-Tensile Braid
Working Pressure Up to 224 Bar (4:1 Safety / Burst Ratio)
Temperature Range -270°C Cryogenic to +600°C Thermal Service
Corrugation Pitch Standard Pitch (SP) & Close Pitch (CP Ultra-Flex)

Frequently Asked Engineering Questions

Which stainless steel grades are used for metal flex hoses? ▾

We primarily hydroform annular corrugated cores using AISI 316L for supreme chemical resistance and AISI 321 for high-temperature exhaust service, braided with AISI 304/316 tensile wire.

What is the advantage of double wire braiding? ▾

Double wire braiding increases the maximum permissible working pressure by 40% to 60% compared to single braid, ideal for high-pressure steam and hydraulic manifold applications.

Do you supply custom cut lengths and welded end fittings? ▾

Yes, all flexible metal hoses are custom cut to required millimeter lengths with precision TIG-welded DIN flanges, BSP/NPT swivel unions, or custom machined connectors.

Need Custom Dimensions or Technical Datasheets?

Our engineering team provides same-day turnaround for standard and custom hose assemblies.

Get Engineering Quote →
